The Engineering Code of Manhole Cover Dimensions: From Standardization to LZB Metal's Precision Adaptation

In modern urban infrastructure, the dimensions of a manhole cover are never arbitrary numbers but an engineering result of the comprehensive interplay between standardization systems, load ratings, installation environments, and maintenance requirements. According to European Standard EN124 and Chinese National Standard GB/T 23858, the dimensional design of manhole covers must meet three core requirements: first, the clear opening size must ensure maintenance personnel can safely enter for underground operations; second, the structural thickness must match the load rating to prevent deformation under long-term heavy loads; and third, the installation fit tolerances must be precisely controlled to eliminate noise, bouncing, and settlement caused by dimensional deviations. From the common Φ600mm round cover to the large 1140×1140mm square access cover, every dimensional figure carries a solemn commitment to public safety.

As a deep participant in China's manhole cover industry standard development, LZB Metal's understanding of cover dimensions transcends simple geometric parameters, elevating it to the level of systematic engineering adaptation. Unlike ordinary manufacturers who merely meet basic dimensional requirements with "standard products," LZB Metal's advantage lies in establishing a full-scenario, stricter-than-national-standards, customizable dimensional system. Backed by nearly two decades of experience in manufacturing high-end municipal castings, the company's products cover weights from 0.5 to 200KG, material grades including QT400-15, QT450-10, QT500-7, and QT600-3, capable of producing all load ratings from A15 to F900 across various dimensions. More importantly, as a participating enterprise in national standard drafting, LZB Metal feeds frontline practical experience back into standard content, ensuring its dimensional designs not only comply with current specifications but also possess forward-looking adaptability for the future.

Manhole Cover Dimensional System and LZB Metal's Core Advantages

I. Standardized Dimensional System and Load Rating Correspondence

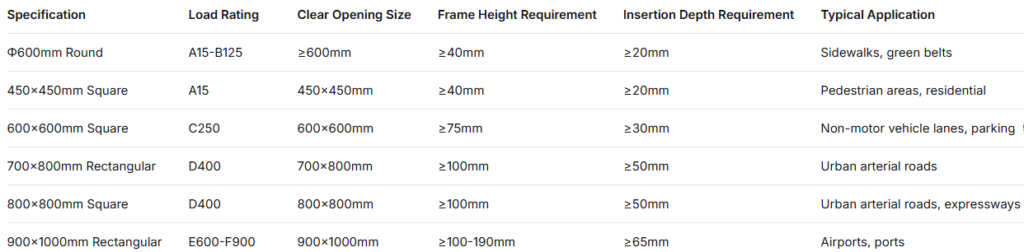

According to GB/T 23858 and international specifications, manhole cover dimensions have clear corresponding relationships with load ratings. The following table shows technical parameters for common specifications:

LZB Metal's product line completely covers all the above specifications, with each specification undergoing rigorous type testing to ensure perfect matching between dimensional accuracy and load-bearing performance.

II. Precision Fit: Dimensional Tolerance Control Exceeding National Standards

The fit gap between the cover and frame is a key indicator of product quality. National Standard GB/T 23858 requires the cover-frame fit gap to not exceed 8mm, while LZB Metal elevates this standard to a stringent ≤1mm. This advantage stems from three technical guarantees: first, the use of intelligent static pressure casting production lines and internationally advanced equipment such as German Eirich sand mixers to ensure casting dimensional consistency; second, full-dimensional sampling inspection of each batch using three-dimensional coordinate measuring instruments; and third, the adoption of precision taper fit design enabling tight engagement between cover and frame at any angle. This "military-grade" dimensional control capability completely eliminates noise and bouncing during vehicle passage, extending the synergistic service life of the cover and pavement.

III. Insertion Depth: Safety Redundancy in Structural Design

Insertion depth (the vertical engagement depth from the frame top surface to the cover bottom surface) is a critical parameter ensuring the cover does not displace or pop out under heavy loads. National standards clearly stipulate: A15 grade covers require insertion depth ≥20mm, C250 grade ≥30mm, and D400 grade ≥50mm. LZB Metal has established stricter internal control standards based on these requirements—all D400 and above grade covers have insertion depths no less than 60mm, with some ultra-heavy products (such as F900) reaching over 80mm. This redundancy design, combined with the triple-spring-clip self-locking system, enables the cover and frame to form an integrated load-bearing system, ensuring the cover remains absolutely stable even under suction forces generated by heavy vehicles passing at high speed.

IV. Scientific Proportioning of Wall Thickness and Reinforcement Ribs

Cover thickness is not simply about being thicker; it requires optimal balance between material strength, structural stiffness, and weight economy. LZB Metal employs finite element topology optimization technology to perform stress distribution simulations for each dimensional specification, scientifically determining wall thickness and reinforcement rib layout. Taking the D400 grade 700×800mm product as an example, its frame height reaches 100-120mm, cover plate thickness is optimized to 60-70mm, and combined with a three-dimensional spatial curved surface reinforcement network, overall stiffness increases by over 40% compared to traditional designs, while weight is reduced by 15-20%. This "lightweight high-load-bearing" design philosophy enables LZB Metal products to achieve superior mechanical performance and longer service life under the same dimensional specifications.

V. Full-Scene Dimensional Coverage and Customization Capability

LZB Metal's product dimensional spectrum is extremely rich, covering most common specifications in the market:

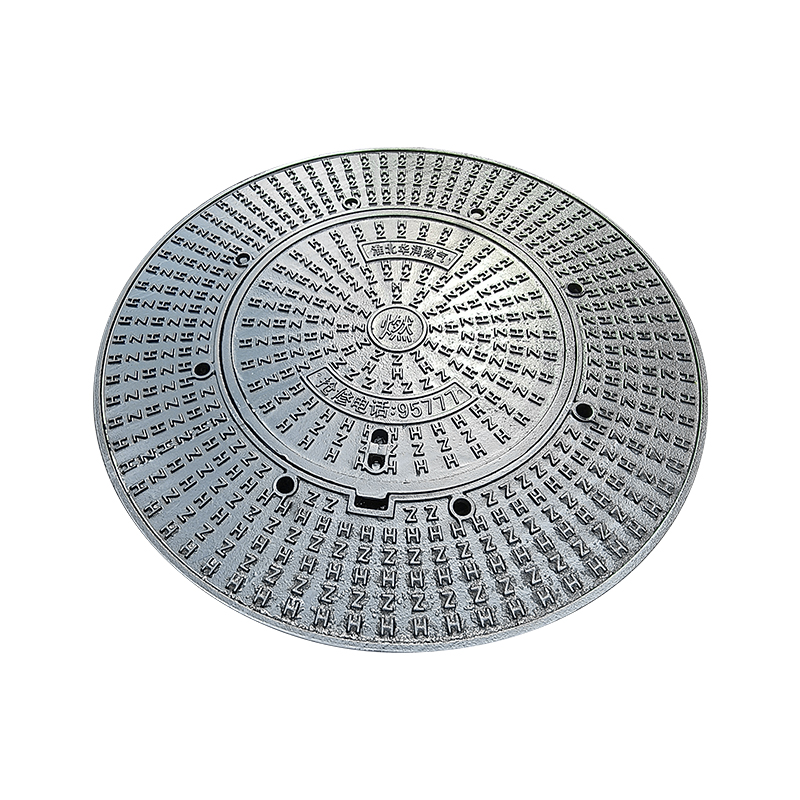

• - Round Series: Φ450mm, Φ600mm, Φ700mm, Φ800mm, Φ900mm, Φ1000mm, Φ1200mm, etc.
• - Square Series: 300×300mm, 400×400mm, 450×450mm, 500×500mm, 600×600mm, 800×800mm, etc.
• - Rectangular Series: 450×600mm, 450×900mm, 600×900mm, 700×800mm, 700×900mm, 800×900mm, 900×1000mm, etc.
• - Special Dimensions: 1140×1140mm large access covers, square outer frame with circular inner core structures (such as 700×800), etc.

For non-standard projects, LZB Metal can rely on its 3D design platform and flexible production lines to complete drawing detailing within 48 hours and initiate customized production within 72 hours, meeting various special engineering requirements.

VI. Deep Integration of Dimensions and Functions

LZB Metal's dimensional design does not exist in isolation but is deeply integrated with multiple functions:

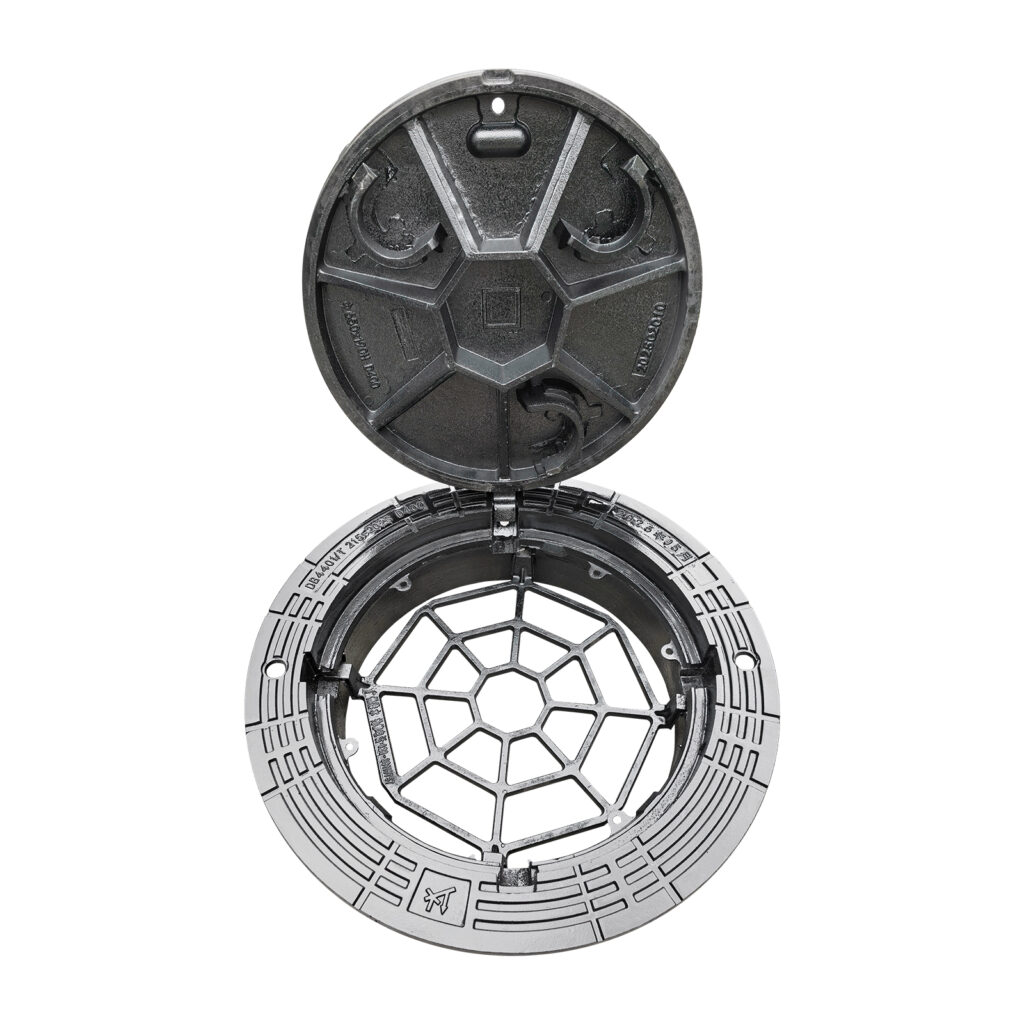

• - Anti-Fall Net Interface: All covers with clear opening ≥600mm are pre-configured with anti-fall net hook installation positions, capable of accommodating high-strength anti-fall nets with load capacity ≥1000kg
• - Intelligent Monitoring Compartment: Standardized sensor compartments are reserved within the cover structure, capable of integrating multi-axial micro-strain, water level, temperature, and other monitoring modules
• - Anti-Theft Locking: Standard captive hinges and special lock systems are integrated with dimensional design, featuring no exposed fasteners
• - Anti-Slip Patterns: Surface anti-slip pattern depths range from 3-10mm, optimized according to dimensional specifications to ensure unified anti-slip performance and drainage efficiency

Conclusion: The Engineering Philosophy Behind Dimensions

The dimensions of a manhole cover have never been isolated geometric numbers. They are an engineering expression resulting from the combined effects of material science, structural mechanics, manufacturing processes, and application scenarios. Through systematic technological innovation, LZB Metal has elevated dimensional design from simple "specification compliance" to "precision adaptation," establishing a full-scene, stricter-than-national-standards, customizable dimensional system.For municipal managers, choosing LZB Metal means selecting not just products that meet standard dimensional parameters, but a complete engineering solution, validated under extreme conditions, centered on optimizing life-cycle value. Whether for rapid delivery of standard specifications or customized development of non-standard projects, LZB Metal provides precisely calculated dimensional designs and indisputable reliability assurance. This is the core of LZB Metal's product superiority over ordinary manufacturers in the dimension of dimensional design.
