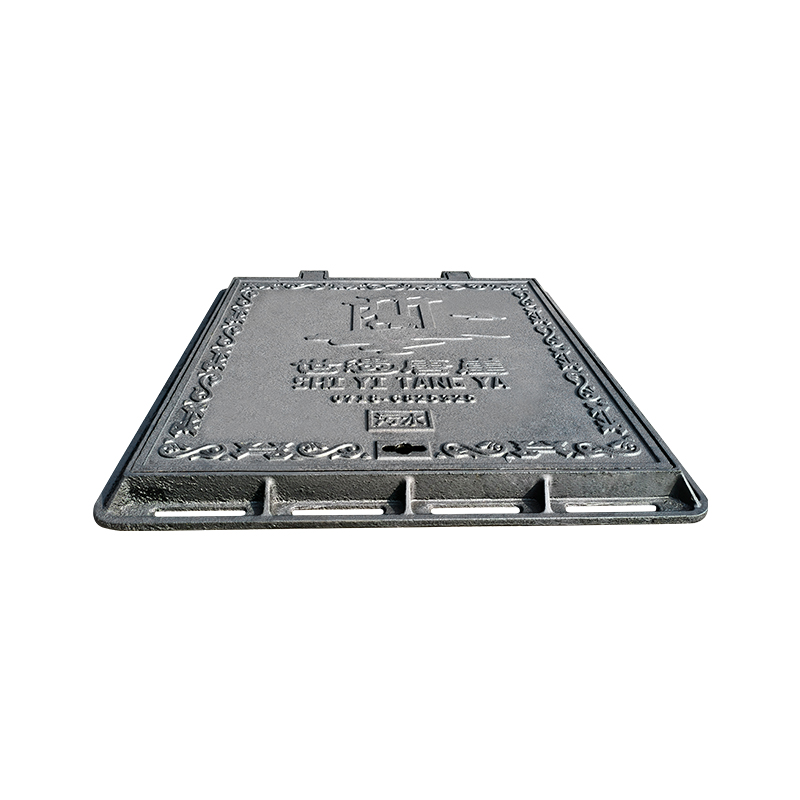

LZBMetal Ductile Iron Square Manhole Cover 600×600×45: An Engineering Benchmark for Medium-Light Load Urban Roads

In urban road systems, the 600×600mm square manhole cover has become a standard component for medium-light load areas such as non-motorized lanes, residential access roads, parking lots, and plazas, due to its moderate dimensions and excellent load-bearing performance. The 45mm thickness design ensures adequate structural rigidity while achieving reasonable self-weight control. The LZBMetal Ductile Iron Square Manhole Cover 600×600×45 strictly complies with GB/T 23858 national standards and EN124 international standards, covering the full load rating spectrum from A15 to C250. The C250 grade product achieves a test load of 250kN (approximately 25 tons), capable of withstanding the daily traffic pressure of medium-duty trucks, sanitation vehicles, and construction machinery.

Core Advantages of LZBMetal Ductile Iron Square Manhole Cover 600×600×45

I. “Exceeding National Standards” Material Gene: The Strong and Tough Load-Bearing Foundation

The LZBMetal Square Cover 600×600×45 is manufactured from QT500-7 or higher grade high-quality ductile iron. Through the selection of high-purity raw materials and a unique rare earth magnesium alloy spheroidizing treatment, the material achieves a tensile strength stably exceeding 500 MPa, with elongation far surpassing national standard requirements. After professional spheroidizing and inoculation treatment, the graphite exhibits a spheroidal morphology with a nodularity rate stably exceeding 90% and a dense, defect-free structure. Compared with traditional gray iron covers, compressive performance is increased by 3-5 times. The C250 grade 600×600×45 product achieves a test load of 250kN, confidently handling the daily traffic pressure of medium-duty trucks and construction machinery.

II. “Precision Reinforcement” Structural Design: Eliminating Stress Concentration

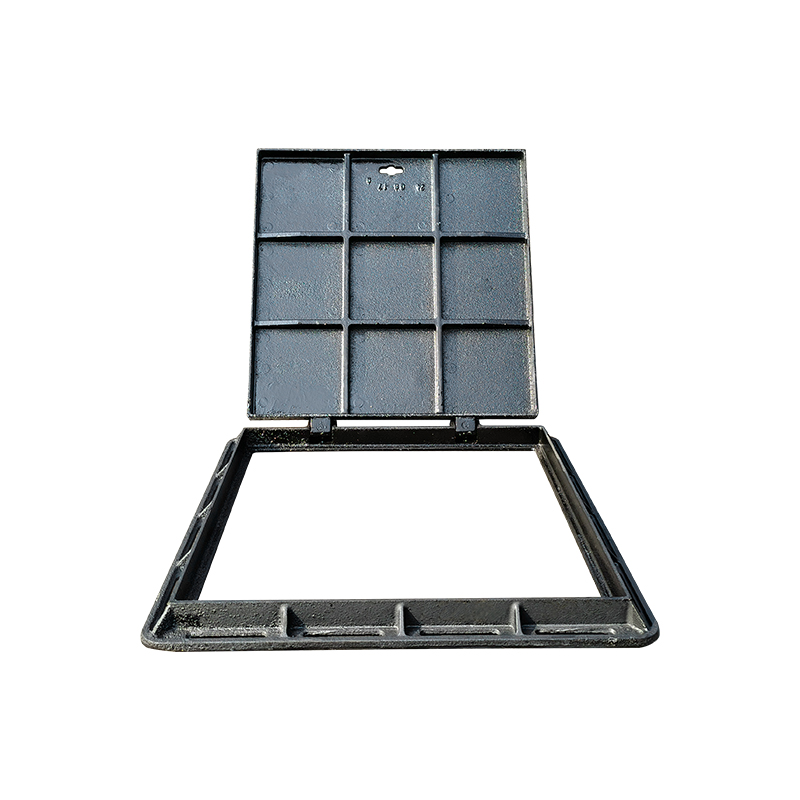

Addressing the corner stress concentration challenges posed by the 600×600 square dimensions, LZBMetal employs finite element topology optimization technology to precisely refine the reinforcement rib layout for this specific size. Through computational simulation of stress distribution under vehicle loads, dense, robust support structures are automatically “grown” in critical stress areas such as the cover center and corners, while material is optimized for lightweighting in low-stress zones. This results in significantly enhanced overall stiffness at the same wall thickness compared to traditional designs, ensuring no plastic deformation occurs under long-term loads.

III. “Cross-Generational Protection” Long-Lasting Corrosion Resistance

As an outdoor road facility, the 600×600 square cover is continuously exposed to corrosive media such as rainwater, de-icing salts, and acid rain. LZBMetal has constructed a triple-layer anti-corrosion protection system: a base layer of hot-dip galvanizing (zinc thickness ≥80μm) providing cathodic protection, an intermediate epoxy resin coating forming a dense barrier, and a polyurethane topcoat enhancing weather resistance. The corrosion resistance far exceeds ordinary coatings, capable of withstanding humidity, acidity, and high-temperature environments. The service life exceeds 30 years, significantly reducing long-term maintenance costs.

IV. “Consistency” Advantage of Precision Manufacturing

LZBMetal‘s dimensional control capability far exceeds industry benchmarks. The company has introduced advanced casting equipment from Germany, with sand mixing processing capacity of 240 tons and total annual production capacity exceeding 100,000 tons. Its cover-frame fit gap is ≤1mm, far surpassing the national standard requirement of ≤8mm, ensuring stable, noiseless operation after installation. Full dimensional sampling inspection of each batch is performed using coordinate measuring instruments. Key indicators are strictly implemented in accordance with GB/T 23858 and customer requirements, achieving “consistent excellence across every product.”

V. Full-Scene Load Coverage: From A15 to C250

The LZBMetal Square Cover 600×600×45 covers the load rating spectrum from A15 (15kN) to C250 (250kN), precisely matching application requirements for medium-light load road grades. C250 grade products are suitable for non-motorized lanes, residential access roads, and parking lots. B125 grade products are suitable for sidewalks and plazas. A15 grade products are suitable for green belts. The product can be customized with markings, adapting to diverse scenarios such as underground utility network upgrades and new construction projects.

Conclusion

Through systematic innovation in material science, structural mechanics, anti-corrosion processes, and precision manufacturing, LZBMetal Ductile Iron Square Manhole Cover 600×600×45 successfully elevates this standard-size infrastructure component into a reliable load-bearing core for urban medium-light load road systems. For municipal managers, choosing LZBMetal means selecting a solemn commitment to road traffic safety and stable utility network operation.
