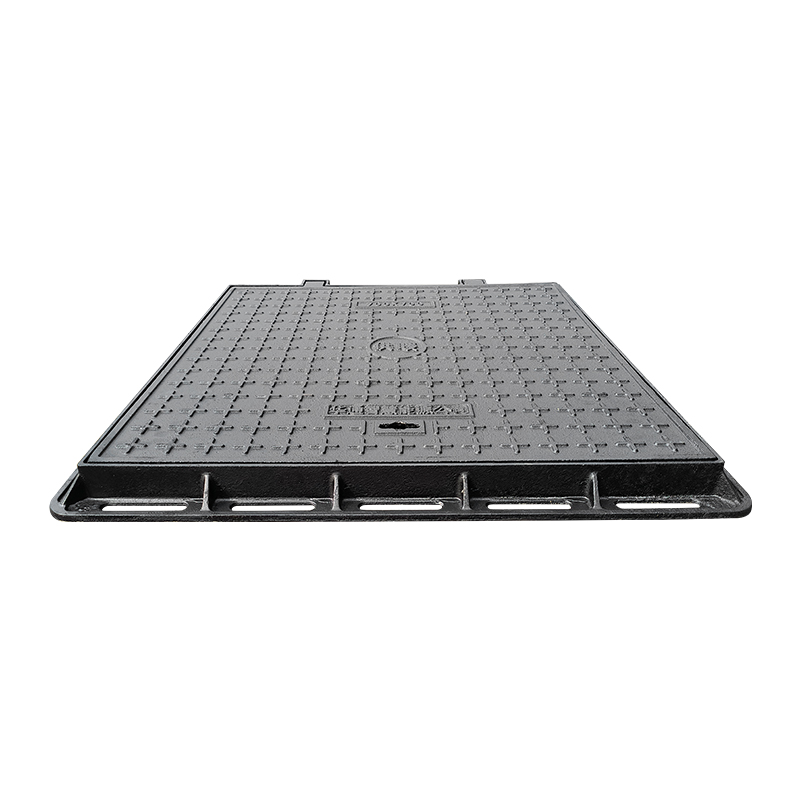

LZBMetal Ductile Iron Square Manhole Cover 700×700×50, 59kg

LZBMetal Ductile Iron Square Manhole Cover 700×700×50 59kg: The Optimized Choice Balancing Strength and Maintenance in Heavy-Duty Areas

Compared with many similar products on the market, LZBMetal‘s advantage lies in achieving exceptional load redundancy and service life at 50mm thickness and 59kg self-weight through systematic engineering optimization. Backed by advanced casting equipment imported from Germany, a portfolio of 98 invention patents, and precision manufacturing capacity exceeding 100,000 tons annually, LZBMetal has established significant technical leadership across four key dimensions: material strengthening at the source, topologically optimized structural design, long-lasting corrosion protection, and micron-level dimensional control, providing a high-quality solution integrating safety, durability, and maintenance economy for urban heavy-duty road systems.

Core Advantages of LZBMetal Ductile Iron Square Manhole Cover 700×700×50

I. “Exceeding National Standards” Material Gene: The Strong and Tough Load-Bearing Foundation

The LZBMetal Square Cover 700×700×50 is manufactured from QT500-7 or higher grade high-quality ductile iron. Through the selection of high-purity raw materials and a unique rare earth magnesium alloy spheroidizing treatment, the material achieves a tensile strength stably exceeding 500 MPa, with elongation far surpassing national standard requirements. The nodularity rate stably exceeds 90%, ensuring a dense, defect-free structure. Compared with traditional gray iron covers, compressive performance is increased by 3-5 times. The D400 grade product achieves a test load of 400kN, confidently handling the daily traffic pressure of heavy trucks and construction machinery. The 59kg self-weight results from dual effects of material strengthening and structural optimization, not from simply reducing wall thickness, ensuring superior impact and fatigue resistance.

II. “Topological Optimization” Advantage in Structural Mechanics: The Mechanical Marvel in 59kg

Addressing the eccentric load stress concentration challenges posed by the 700×700 square dimensions, LZBMetal employs finite element topology optimization technology to precisely refine the reinforcement rib layout for this specific size. Through computational simulation of stress distribution under extreme conditions such as heavy vehicle eccentric loading and hard braking, dense, robust support structures are automatically “grown” in critical stress areas including the cover center, corners, and wheel-path zones, while material is optimized for lightweighting in low-stress zones. This “lightweight yet high load-bearing” design philosophy ensures that the 59kg self-weight exhibits stiffness and fatigue performance surpassing conventional products weighing over 80kg, maintaining structural integrity without plastic deformation under long-term heavy loads.

III. “Cross-Generational Protection” Long-Lasting Corrosion Resistance

As an outdoor heavy-duty facility, the 700×700 square cover is continuously exposed to corrosive media such as rainwater, de-icing salts, and acid rain. LZBMetal has constructed a triple-layer anti-corrosion protection system: a base layer of hot-dip galvanizing (zinc thickness ≥80μm) providing cathodic protection, an intermediate epoxy resin coating forming a dense barrier, and a polyurethane topcoat enhancing weather resistance. This entire system has passed over 3,000 hours of salt spray testing, offering corrosion resistance far superior to ordinary bitumen coatings, capable of withstanding humidity, acidity, and high-temperature environments. The service life exceeds 30 years, significantly reducing life-cycle maintenance costs.

IV. “Consistency” Advantage of Precision Manufacturing

LZBMetal‘s dimensional control capability far exceeds industry benchmarks. The company has introduced advanced casting equipment from Germany, with sand mixing processing capacity of 240 tons and total annual production capacity exceeding 100,000 tons. Its cover-frame fit gap is ≤1mm, far surpassing the national standard requirement of ≤8mm, ensuring stable, noiseless operation after installation and eliminating noise and bouncing during vehicle passage. Full dimensional sampling inspection of each batch is performed using coordinate measuring instruments. Key indicators (weight deviation, load capacity, dimensional tolerance, nodularity rating) are strictly implemented in accordance with GB/T 23858 and customer requirements, achieving “consistent excellence across every product,” ensuring that every 59kg square cover delivers identical performance.

V. Maintenance-Friendly Human-Centric Design

The 59kg self-weight is precisely calculated to provide sufficient structural safety while allowing safe opening by a single person using simple tools. The cover comes standard with integrated handles and mechanical lifting points, facilitating efficient operation for maintenance personnel. Optional captive hinges and special locks effectively prevent unauthorized theft. The surface features a deep anti-slip pattern with a dry friction coefficient ≥0.65, maintaining reliable slip resistance even in rainy and snowy conditions. Analyzed from a life-cycle cost perspective, the LZBMetal Square Cover 700×700×50, with its exceptionally long maintenance-free period and extremely low failure rate, results in significantly lower total costs compared to cheap alternatives requiring frequent replacement and repair.
